‘MRI’ Scan Reveals Spectacular Ice Age Landscapes Beneath the North Sea

Spectacular ice age landscapes beneath the North Sea have been discovered using 3D seismic reflection technology.  Similar to MRI (magnetic resonance imaging), the images reveal in unprecedented detail huge seafloor channels — each one 10 times wider than the River Thames.

For the first time, an international team of scientists can show previously undetectable ice age landscapes that formed beneath the vast ice sheets that covered much of the UK and Western Europe thousands to millions of years ago. These ancient structures provide clues to how ice sheets react to a warming climate. The findings were published in the journal Geology.

The new high-resolution 3D seismic reflection data reveals ice age landscapes.

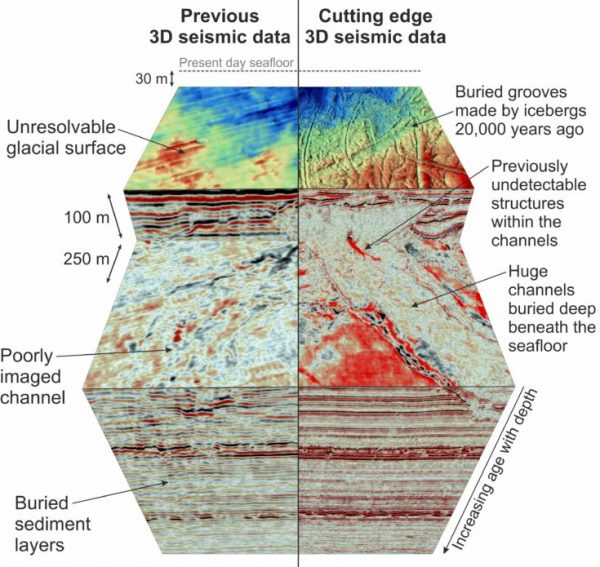

Comparing the resolution of the new high-resolution 3D seismic reflection data to previous 3D seismic data from this region. The new data revolutionizes our ability to image these buried channels and their internal structures, as demonstrated by the contrast between the left and right of the image. (Image: via James Kirkham, BAS)

So-called tunnel valleys, buried hundreds of meters beneath the seafloor in the North Sea, are remnants of huge rivers that were the “plumbing system” of the ancient ice sheets as they melted in response to rising air temperatures. Lead author James Kirkham, from the British Antarctic Survey (BAS) and the University of Cambridge, said:

“The origin of these channels was unresolved for over a century. This discovery will help us better understand the ongoing retreat of present-day glaciers in Antarctica and Greenland.

“In the way that we can leave footprints in the sand, glaciers leave an imprint on the land upon which they flow. Our new cutting edge data gives us important markers of deglaciation. ”

Dr Kelly Hogan, co-author and a geophysicist at BAS, says:

“Although we have known about the huge glacial channels in the North Sea for some time, this is the first time we have imaged fine-scale landforms within them. These delicate features tell us about how water moved through the channels (beneath the ice) and even how ice simply stagnated and melted away.

“It is very difficult to observe what goes on underneath our large ice sheets today, particularly how moving water and sediment is affecting ice flow and we know that these are important controls on ice behaviour. As a result, using these ancient channels to understand how ice will respond to changing conditions in a warming climate is extremely relevant and timely.”

Ice age landscapes revealed by 3D seismic reflection technology

3D seismic reflection technology, which was provided by industry partners, uses sound waves to generate detailed 3D representations of ancient ice age landscapes buried deep beneath the surface of the Earth, in a similar manner to how magnetic resonance imaging (MRI) scans can image structures within the human body. The method can image features as small as a few meters beneath the surface of the Earth, even if they are buried under hundreds of meters of sediment.

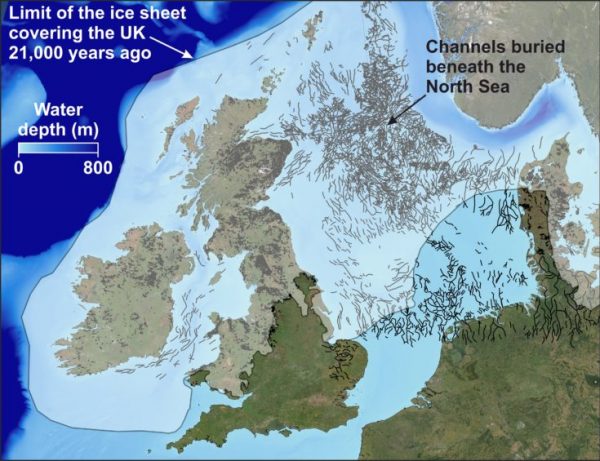

A map of the North Sea showing the distribution of buried channels (tunnel valleys) that have been previously mapped using 3D seismic reflection technology. The limit of the last ice sheet to cover the UK (around 21,000 years ago) is overlain. (Image: via James Kirkham)

The exceptional detail provided by this new data reveals the imprint of how the ice interacted with the channels as they formed. By comparing these ancient “ice fingerprints” to those left beneath modern glaciers, the scientists were able to reconstruct how these ancient ice sheets behaved as they receded. By diving into the past, this work provides a window into a future warmer world where new processes may begin to alter the plumbing system and flow behavior of the Antarctic and Greenland ice sheets.

Provided by: British Antarctic Survey [Note: Materials may be edited for content and length.]
